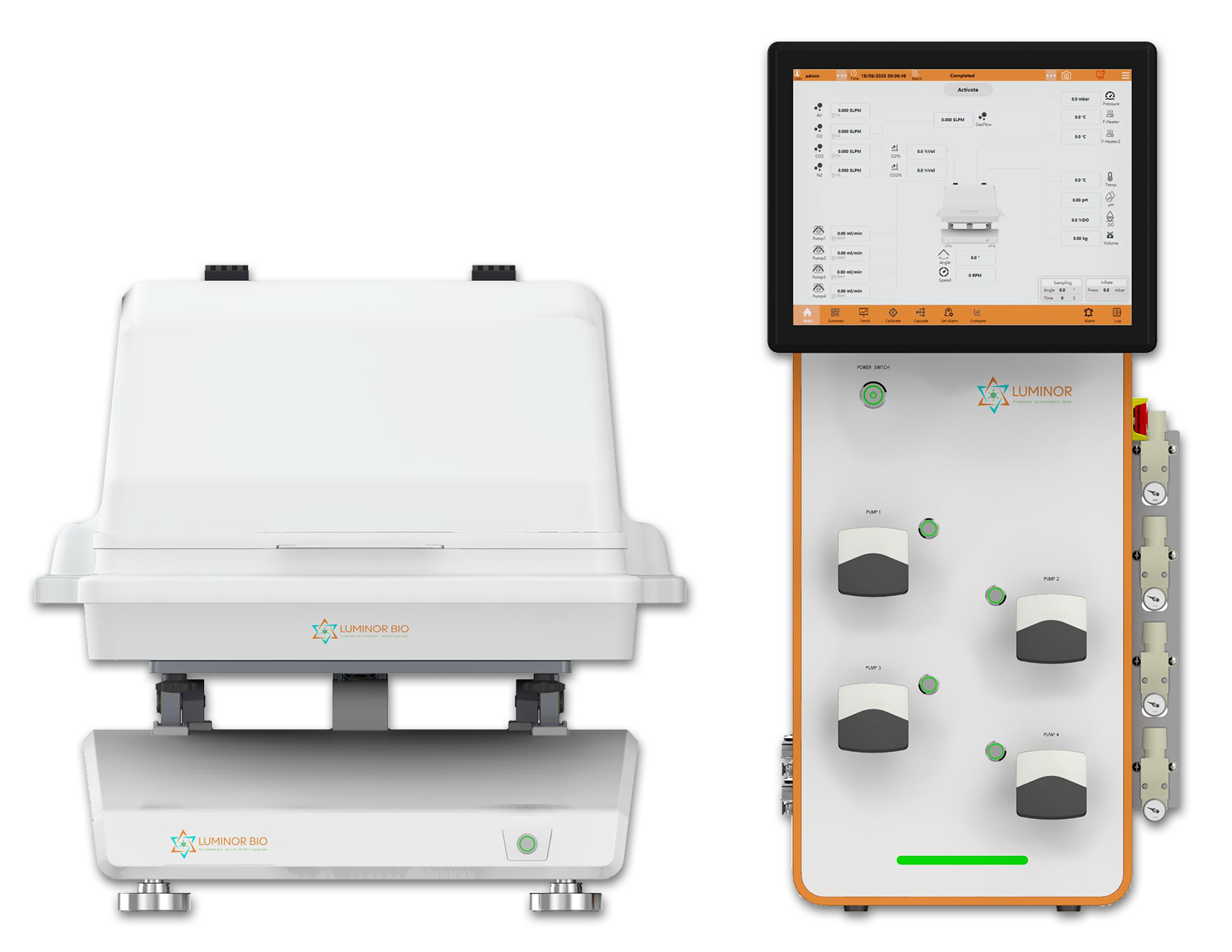

Lumi – RMax:
Modular Rocking Bioreactor for every Scale
Overview
Value Proposition
Our specially designed Lumi – RMax rocker platform supports a wide range of single-use cultivation bags, delivering the flexibility required for modern cell culture applications. Advanced control of rocking speed, rocking angle, and gas flow maintains critical process parameters—including pH, dissolved oxygen (DO), and temperature—ensuring gentle mixing, optimal culture conditions, and reproducible cell expansion from development through production. Designed for maximum scalability, Lumi – RMax offers exceptional versatility through interchangeable 10 L, 20 L, and 50 L tray configurations.
Ideal for Cell & Gene Therapy (CGT) workflows, vaccine production, viral vector manufacturing, stem cell expansion, immunotherapy development, and other advanced cell culture applications, Lumi – RMax provides the flexibility, scalability, and process control required to support the transition from early-stage research to clinical and commercial manufacturing.
Flexible Tray Options
10L, 20L, or 50L trays are easily interchangeable on the same base
Seamless Scale-Up
Tray replicability enables efficient cell expansion from R&D to seed preparation
Intelligent Control
Automatic operation for one or multiple trays
Features
Versatile Hardware
Lumi – RMax simulates the swing of waves to achieve efficient gas-liquid exchange in a closed system, improving the efficiency and yield of cell culture
- Interchangeable trays: Lumi – RMax bioreactor supports seamless change of trays without additional equipment.
- Multi-bag Compatibility: 10L Tray can accommodate 2L/5L/10L Single-use 2D bags.20L Trays support 20L or 2* 10L Single-use 2D bags、50L Tray for 50L Single-use 2D bags.
- Parallel and multi control: When using a IPC, 2-8 rockers can be controlled in parallel. It facilitates operation and centralized control.
Advanced Gas and Fluid Control
- Precision 3-Gas Mixing: Integrated 1 or 3 Thermal Mass Flow Controllers (TMFC), ensuring exact dissolved oxygen and pH buffering.
- Integrated Pumping Station: Four built-in, front-facing fixed/variable-speed peristaltic pumps dedicated to feeding, acid/base addition, and antifoam, minimizing the need for external equipment.
LumiWise Advanced Automation & Compliance
LumiWise combines powerful automation, intuitive process control, and regulatory-ready compliance in a single platform. Advanced cascade control enables automatic linking of PID loops, allowing DO to dynamically control agitation, oxygen enrichment, or gas flow.
Designed for GMP environments, LumiWise supports 21 CFR Part 11 compliance with electronic records, electronic signatures, audit trails, and role-based access control.
Smarter Automation. Greater Compliance. Better Process Control.
Technical Specifications
Control System
| Tray | 10L/20L/50L |
|---|---|
| Lid | 10L/20L/50L |
| Power | AC 220V, 50/60 Hz, 6.9A |
| kW | 1500 VA |
| Controller Dimensions | 70cm H x 39cm W x 54cm D |
Base & Environment
| Speed | 1 – 40 rpm |
|---|---|
| Tilt | 1° – 12° |
| Accelerated Speed | 15% – 100% |
| Medium Weight | 0.5 – 25 kg |
| Temperature | Ambient + 5°C to 40°C |
| Temperature Accuracy | ± 0.2°C |
Gas & Exhaust
| Flow | 0.025 – 0.5 L/min |
|---|---|
| CO2 | 0% – 20% |
| O2 | 0% – 50% (mixed with N2) 21% – 50% (mixed with Air) |
| Exhaust | Condenser, with exhaust filter heating assembly |
Sensors
| pH (Optical) | 5.5 – 8.5 |
|---|---|
| pH Range | 6 – 8 |
| pH Accuracy | ±0.05 |
| DO (Optical) | 0% – 200% Air saturation |
| DO Accuracy | ±5% Air saturation |
Peristaltic Pumps
| Pump Flow | Small pump, 0.1 – 36 L/D, 0.07 – 25 mL/min Large pump, 0.1 – 260 L/D, 0.07 – 180 mL/min |
|---|---|
| Pump Flow Accuracy | Calibrated value with ± measured value of 0.1 +5%) mL/min |
| Options to Add External Pump | Yes |
